รายละเอียดสินค้า:
|
| ชื่อ: | หมักผงสต๊อดซีดี | วัสดุ: | อลูมิเนียมอัลลอยด์, สแตนเลส, เหล็กชุบสังกะสี |
|---|---|---|---|
| การรักษาพื้นผิว: | ขัดเงา | PIN DIA: | 3.0 มม. |
| ความยาวพิน: | 45 มม.-500 มม | ปลายเข็ม: | แบนและคม |
| ตัวอย่าง: | สนับสนุน | บริการ: | บริการประตูสู่ประตู |
| เน้น: | 3mm aluminum alloy stud welding pins,marine building insulation stud pins,CD stud welding pins with warranty |
||
CD (Capacitor Discharge) weld pins is one kinds of welding nails used for thermal insulation of a
boiler in a power plant, which is used to fix the thermal insulation material. The nail is welded to the
surface of the boiler in the power plant through a capacitive discharge welder, the thermal insulation
material is installed on the welded nail, the thermal insulation material is fixed with self locking
washers , and finally bent to cut off the excess nail tip, or locked on the top with a general cap to
achieve protective effect.

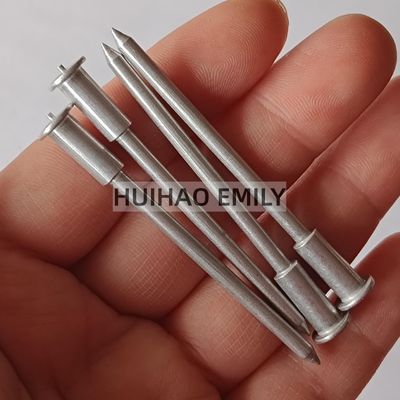

| Aluminun alloy insulation CD stud welding pins | |
| Common specifications | Diameter :2.7mm,3.0mm,3.4mm,4mm,5mm |
| Pin length :10mm-500mm | |
| Material | Pin:Aluminum alloy, Stainless steel,Stainless steel, |
| Surface treatment | Polishing, galvanzied plating |
| Product features | Pins are soft, easy bending over |
| Excellent stickness for double-sided adhesive property | |
| Length tolerance ±0.3mm | |
| Production workmanship | Automated production |
| Packing |
Packing can be customized as per requirements, current packing information ,available upon request. |
| Supply capability | 10000Pcs/hour |
| Application | Fixing various insulation deck boards |
| Install part | Self locking washer ,metal dome cap washer ,PE+metal dome cap washer |
|
|
Aluminum stud gun
Material :aluminum alloy Surface treatment :polished Base size :5mmx12mm Pin size :3mmx60mm Accessories:self locking washer ,dome cap washer |
|

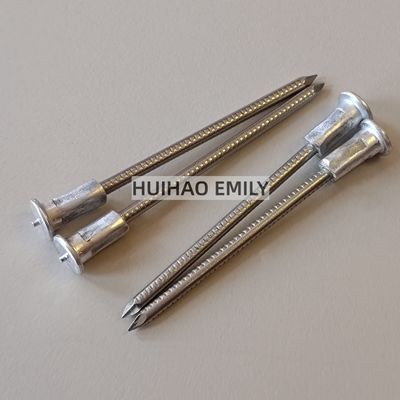

Bimetallic stud pins
BaseMaterial :aluminum alloy Surface treatment :polished Pin material :mild steel ,stainless steel Surface treatment:polished ,galvanized ,copper coated Base size :6mmx15mm Pin dia :2.7mm,3.0mm Pin length:45mm-200mm Accessories:self locking washer ,dome cap washer |
 |
|
Material :aluminum alloy ,stainless steel,mild steel Surface treatment :polished ,galvanized ,copper coate Pin dia :2.7mm,3.0mm (1mm-5mm) Pin length:45mm-200mm Accessories:self locking washer ,dome cap washermmm |
|
|
|
Round self locking washer Material :stainless steel ,galvanized steel Size:15mm,25mm,32mm,38mm,50mm,60mm |
Round self locking washer Material :stainless steel ,galvanized steel Size:32mm,40mm,50mm,64mm
|
|
|
|
|
Metal dome cap washer Material:stainless steel ,galvanized steel ,aluminum alloy Size:22mm,28mm,,30mm,,32mm,38mm Center hole :for fxing 2mm,2.7mm,3.0mm insulation fasteners |
PE Cap+Metal dome cap washer Cap material :PE Cap color :white ,black ,other to be request washer material:stainless steel ,galvanized steel ,aluminum alloy Size:42mm Center hole :for fixing 2.7mm,3.0mm,3.4mm, 4mm,5mm insulation fasteners |
|
|
Package of Aluminum Alloy Insulation CD Stud Welding Pins : >> Package 2. to be your requirements. |
|
HUIHAO company is a insulation fasteners/insulation anchors manufacturing company,
2.self adhesive pins 3.CD weld pins 4.Bimetallic pin 5.Cup head weld pins 6.Lacing Anchors&Quilting pins &lacing hooks washer 7.all kinds of self locking washers, Dome caps. |
|
